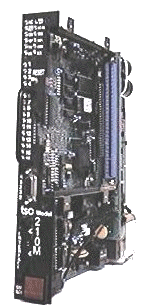

Model 210M Features and Specifications

FEATURES

Compatibility with all TYPE 170 and TYPE 179 Controllers
RS232 Serial Communications Capability
Systems Communications through Controller Unit as an option
Microprocessor based design
Self-diagnostics
Real Time Clock
Event Logging
Enhanced Monitoring including Red Monitoring

BENEFITS

Reduced Litigation
Accurate Record Keeping and Data Logging
Improved Intersection Operation and Efficiency
Cost Effective

SPECIFICATIONS

SIZE	In accordance with type 170 Specifications
POWER REQUIREMENTS	89 to 135 volts ac, or as per applicable specification 60 +/- 3 Hertz 1 Amp SLO-BLO fusing
TEMPERATURE	-34°C to +74°C Operating -50°C to +85°C Storage
CHANNELS MONITORED	16 Channels, 18 optional - add "-18" to model number.
MONITORED SIGNALS	+24 Volt dc Controller Watch Dog, 1.0 seconds or 1.5 seconds. 48 ac field wire voltages (both polarities of sinusoid and out-of-phase voltages are monitored). 54 as an option, ("-18")
DISPLAYED INFO	All active channels, power, and FAULTS on LEDs.
RESET	`RESET' button prevents defeating unit operation
BASIC FUNCTIONS	Conflicting Green or Yellow on any two or more non-compatible channels (full or half-wave). FAULT signal status retained through power failure in EEPROM and displayed on LED indicators.
ENHANCED FUNCTIONS	Minimum Yellow Timing selectable by channel. Sequence monitoring selectable for each channel. No Input (Absence of Red) selectable by channel. Multiple Output selectable for each channel. Selections made through RS232 port. Internal monitor Hardware and Software Watch Dog.

Meets CALTRANS TYPE 170 requirements. Performs RMS (not peak) and out of phase voltage monitoring for Green, Yellow and Red inputs. Supplied with Model 210-DC Diode program card for programming permissives and Yellow inhibit. Uses internal Menu-driven Set-up Program for making monitoring selections by channel. Example of Event Log print-out below.

SITE  FFFF 00FF  DATE 12/16/94  TIME 18:26:32


LAST SETUP CHANGE 12/16/94 18:13

LAST TIME/DATE CHANGE 12/10/94 08:34

EVENT LOG OVERFLOW 08/22/94 08:36

LAST PRINT OUT 12/16/94 10:07

CLEARED EVENTS 12/16/94 10:08

  #   DATE     TIME            1111111  EVENT

                      1234567890123456

  001 08/22/94 08:33  GGGGRRRRYYYYGGRR  TRANS FAIL 4G 4R

  002 07/15/94 23:20                    CONTROLLER RESET

  003 07/15/94 23:19                    POWER UP

  004 07/15/94 20:23  RRRRYYYYGGGYYRRR  POWER FAIL

  005 06/05/94 12:18  YYYYGGRRGGRRRRRR  WATCH DOG FAIL
