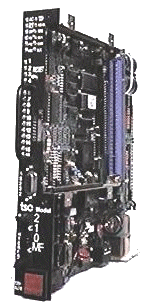

Model 210MF Features and Specifications



FEATURES

  • Compatibility with all TYPE 170 and TYPE 179 Controllers
  • RS232 Serial Communications Capability
  • Systems Communications through Controller Unit as an option
  • Microprocessor based design
  • RMS voltage monitoring (not peak-voltage-only)
  • Self-diagnostics
  • Internal monitor Hardware and Software Watch Dog
  • Real Time Clock
  • Event Logging of 100 records retained through power failure
  • Enhanced Monitoring including Red Monitoring
  • Simple command/routine enables all functions for automatic testing while retaining desired set-up for intersection
  • Temperature and line voltage recorded with events
  • Displaying permissive programming on Personal/Laptop Computer


BENEFITS



SPECIFICATIONS

SIZE In accordance with Type 170 Specifications
POWER REQUIREMENTS 89 to 135 volts ac, or as per applicable specification.
60 +/- 3 Hertz 1 Amp SLO-BLO fusing
TEMPERATURE -34°C to +74°C Operating       -50°C to +85°C Storage
CHANNELS MONITORED 16 Channels, 18 optional - add "-18" to model number.
MONITORED SIGNALS +24 Volt dc
Controller Watch Dog, 1.0 seconds or 1.5 seconds. 48 ac field wire voltages (54 as an option, "-18")
DISPLAYED INFO All active channels, power, and FAULTS on LEDs. Most recently recorded FAULT including signal status automatically displayed on front panel LEDs.
RESET `RESET' button prevents defeating unit operation
BASIC FUNCTIONS Conflicting Green or Yellow on any two or more non-compatible channels (full or half-wave). Failure of Watch Dog Timer signal (Watch Dog Error). Low DC power input (24VDC).
ENHANCED FUNCTIONS Short or missing Yellow selectable by channel. Sequence monitoring selectable for each channel. No Input (Absence of Red) selectable by channel. Multiple Output selectable for each channel. Selections made through RS232 port. Low (Brownout) and high AC line voltage. Failure due to removal of program card.

Meets CALTRANS TYPE 170 requirements. Performs RMS (not peak) and out of phase voltage monitoring for Green, Yellow and Red inputs. Supplied with Model 210-DC Diode program card for programming permissives and Yellow inhibit. Uses internal Menu-driven Set-up Program for making monitoring selections by channel. Example of Event Log print-out below.
SITE  FFFF 00FF  DATE 12/16/94  TIME 18:26:32
LAST SETUP CHANGE 12/16/94 18:13
LAST TIME/DATE CHANGE 12/10/94 08:34
EVENT LOG OVERFLOW 08/22/94 08:36
LAST PRINT OUT 12/16/94 10:07
CLEARED EVENTS 12/16/94 10:08
# DATE TIME 1111111 TEMP AC EVENT
1234567890123456 (F) LINE
001 08/22/94 08:33 GGGGRRRRYYYYGGRR 14 107 TRANS FAIL 4G 4R
002 07/15/94 23:20 44 105 CONTROLLER RESET
003 07/15/94 23:19 POWER UP
004 07/15/94 20:23 RRRRYYYYGGGYYRRR POWER FAIL
005 06/05/94 12:18 YYYYGGRRGGRRRRRR 105 122 WATCH DOG FAIL
